Cylinders and filter cartridges

Technical drawing of a filter cartridge Technical drawing of a filter cartridge Technical drawing of a filter cartridge

These metal filters and fabricated parts simply belong together due to their cylindrical shape and the associated manufacturing step. The following applies for cylinders and filter cartridges, wire mesh cones and filter wraps: The wire mesh blank is rolled. The filter cartridges, in particular, will be familiar to many of you in the automotive industry and in water treatment. The multi-faceted metal wire mesh scores particularly well under the influence of extreme environmental conditions - namely through the adaptability of its mechanical, chemical and physical properties.

Different cylinders and filter cartridges made of metal wire mesh

  • Fabric wrap with plastic overmoulding - also known as a dishwasher screen. Fabric wrap with plastic overmoulding - also known as a dishwasher screen. Fabric wrap with plastic overmoulding - also known as a dishwasher screen.
    Dishwasher sieve: single layer with plastic overmoulding
  • Filter cartridge with pleated wire mesh, connector and base Filter cartridge with pleated wire mesh, connector and base Filter cartridge with pleated wire mesh, connector and base
    Extruder filter: multi-layer, with a wedge wire cylinder, connection piece and base
  • Filter wrap with a sheet metal ring Filter wrap with a sheet metal ring Filter wrap with a sheet metal ring
    Filters for auxiliary heaters: single-layer filter wraps with and without a sheet metal ring
  • Filter cartridge with an edging Filter cartridge with an edging Filter cartridge with an edging
    Extruder filter: two-layered filter cartridge with an edge trim
  • Wire mesh cylinder with a collar and base Wire mesh cylinder with a collar and base Wire mesh cylinder with a collar and base
    Filter for laboratory suspensions: twilled weave, with a bottom and collar
  • Filter wrap with metal edging Filter wrap with metal edging Filter wrap with metal edging
    Compressed air filters in airbags: multi-layered, with metal edging
  • Metal wire mesh filter wrap Metal wire mesh filter wrap Metal wire mesh filter wrap
    Germ and bacteria filter in the water: single-layer spiral filter wrap

Individual design and manufacture

Shape, joining method and face side finishing

And here too: Your needs decide.

  1. Depending on your requirements, we design single or multi-layered, smooth or pleated woven wire cloth in a cylindrical or conical shape for your application.
  2. We produce the cylinders and filter cartridges, mesh cones and filter wraps fully automatically or in individual production.
  3. The wire mesh layers are joined by spot or roll seam welding, with the longitudinal seams overlapping or butt welded together. You do not want a welded seam?
    For large series we offer endless cylinders as well as woven cylinders without weld seams.
  4. The face sides of all product types also receive a finish at your request.
Close-up of the welding process Close-up of the welding process Close-up of the welding process
Plasma, TIG, MIG, MAG and resistance welding processes, roll seam and spot welding.

Enquiry made easy

Checklist for your quotation

Do you need a filter in a cylindrical form or are you interested in a process filter for water treatment? The following checklist contains essential information for a quick and effective processing of your product enquiry.

Checklist for your quotation. Checklist for your quotation. Checklist for your quotation.

This could also interest you:

Multi-layered filter disc with edge zone compressionMulti-layered filter disc with edge zone compressionMulti-layered filter disc with edge zone compressionMulti-layered filter disc with edge zone compression
Filter discs and wire mesh piecesYour search for a flat, robust and, above all, precise filter - whether round, square or special shape - has come to an end.Read on
Round deep-drawn wire mesh filterRound deep-drawn wire mesh filterRound deep-drawn wire mesh filterRound deep-drawn wire mesh filter
Deep-drawn partsDeep-drawing of single or multi-layer wire mesh into a three-dimensional shape increases its surface area and thus, in the case of a filter, also the filter surface area.Read on

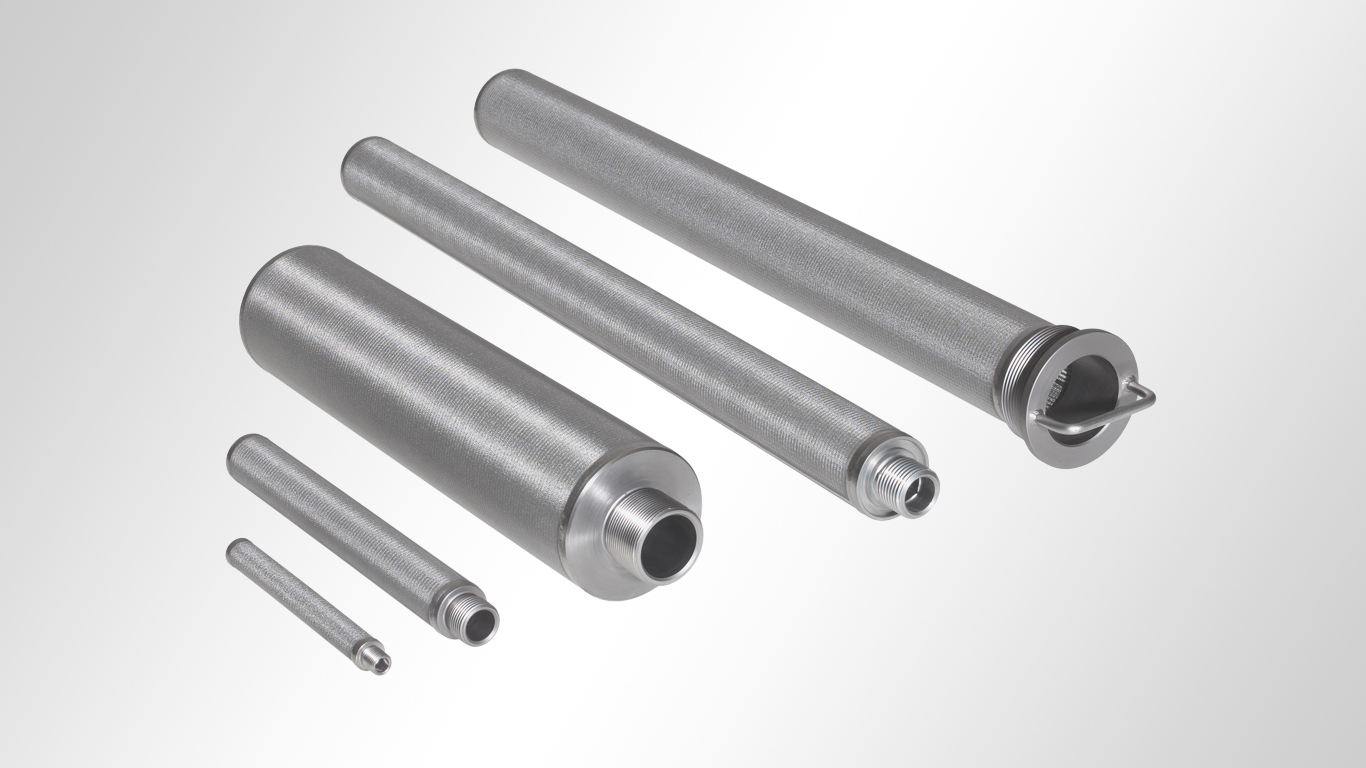

A selection of POROSTAR® filter cylinders and filter cartridgesA selection of POROSTAR® filter cylinders and filter cartridgesA selection of POROSTAR® filter cylinders and filter cartridgesA selection of POROSTAR® filter cylinders and filter cartridges
