Precise, robust and standard-compliant

HAVER wire mesh for screening applications

Modern classics for your safe screening process

Precision and reliability are decisive factors in the field of industrial screening. We are aware of these high quality demands and manufacture precise and reliable screening media for all types of screening machines with opening sizes from 0.025 mm to over 100 mm. We produce our wire mesh fabric in the classic way with warp and weft on specially constructed weaving machines – of course in accordance with standards DIN ISO 14315 and DIN ISO 9044.


Whatever you are screening – we will find the right wire for you.
Michael Stichling, Business Unit Manager Industrial Wire Screens

Reliable and certified

You can rely on it

Haver & Boecker sets international standards in quality and service. Our basis is our know-how and many years of experience in the production of screening media as well as constructive cooperation in all relevant standardisation committees. Our process-oriented quality management is certified according to DIN EN ISO 9001:2015. Furthermore, in addition to high-quality screening media, we also offer you a comprehensive range of systems for industrial screening in cooperation with our subsidiaries worldwide.

Best materials

Your direct line to success

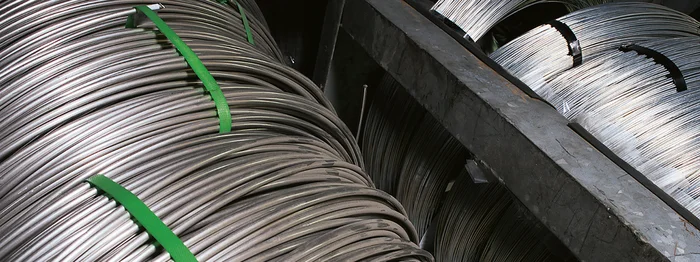

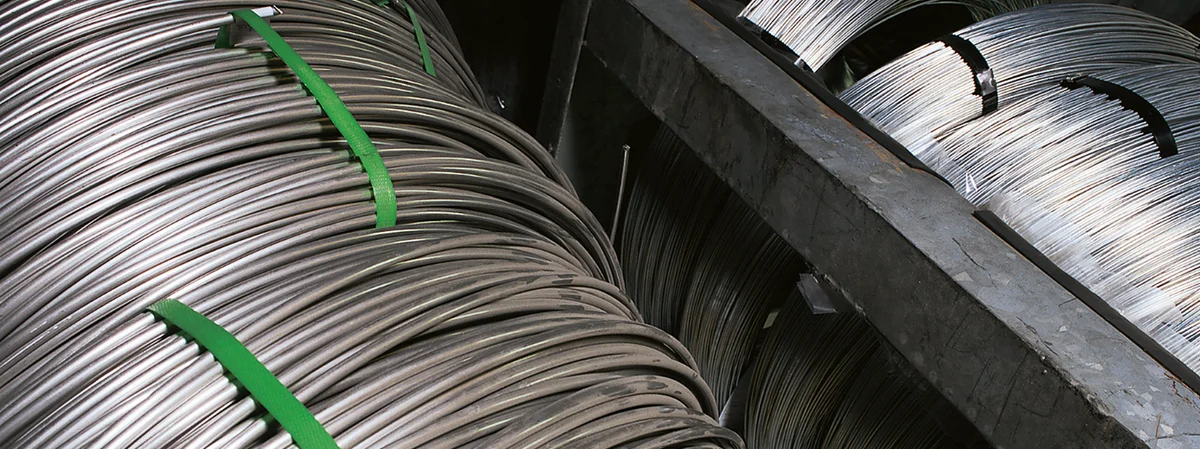

Each screening material has certain properties that you should take into account when designing your screening process. Depending on these material properties, it is important to identify the ideal alloy for your wire mesh. Haver & Boecker produces woven wire mesh from almost all materials. In addition to HAVER NIA® spring steel, we use various stainless steels for wire cloth that guarantee you maximum stability and durability as well as optimum function.

We will find the right wire mesh for your application.

In addition to the standard materials, we also supply special stainless steel alloys for temperature and acid-sensitive screening materials. Please do not hesitate to contact us directly:

Your Team of Experts

Support and Service

Industrial Wire Screens

Industrial Wire Screens

+49 2522 30-8310 screens@haverboecker.com

We can help you find the optimum screening medium for your screening process.
Ralf Wiederhold, Sales Industrial Wire Screens

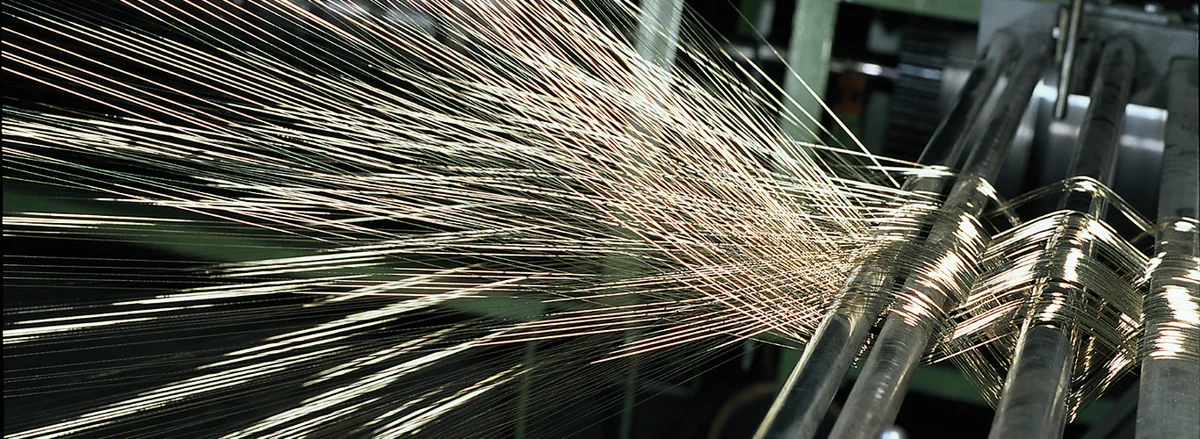

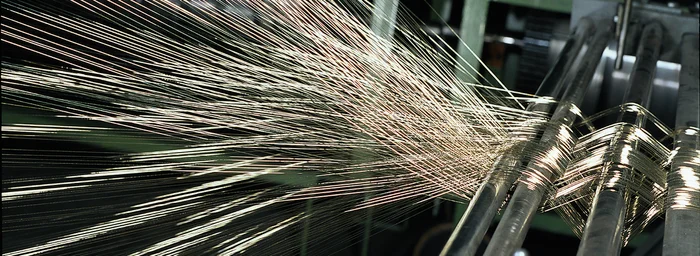

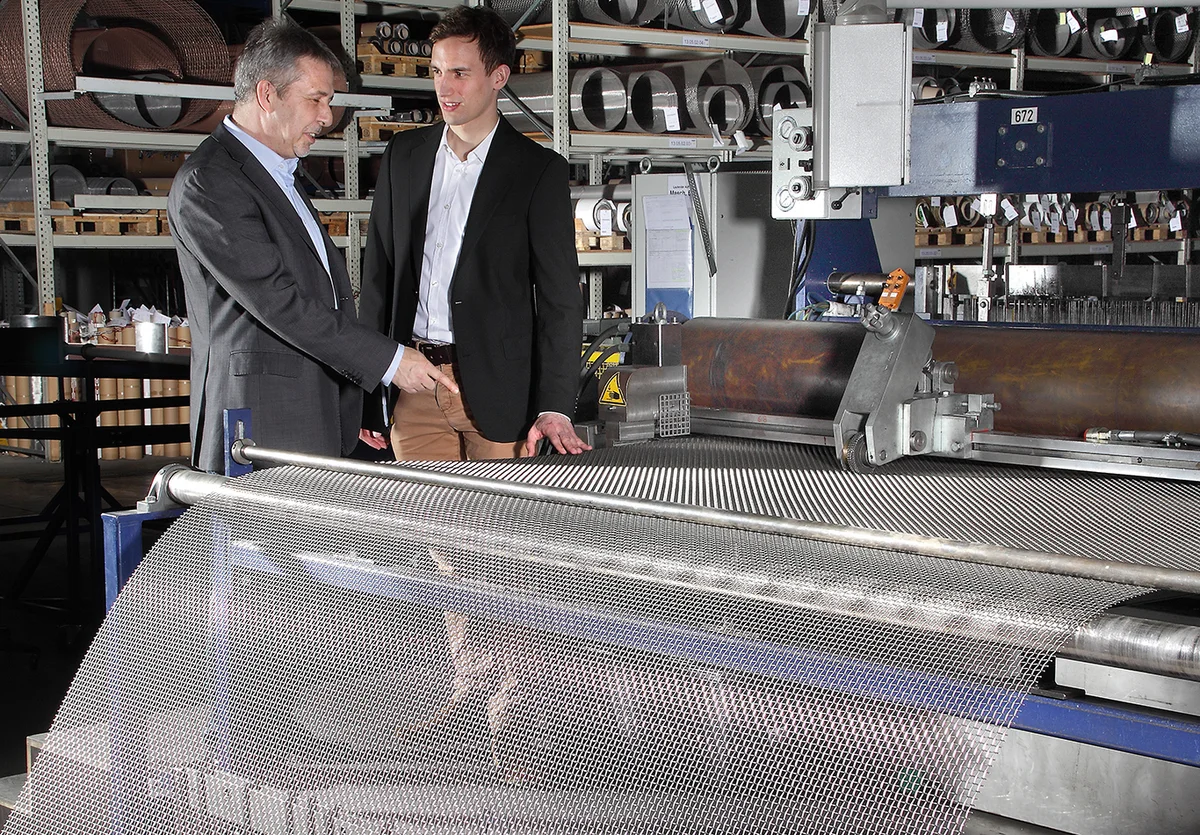

Woven wire cloth on a weaving loom Woven wire cloth on a weaving loom Woven wire cloth on a weaving loom
Woven wire cloth on a weaving loom

Weave types for wire screens according to DIN ISO 4783/3

For accurate screening results or for separating longitudinal particles, the use of square wire cloth is imperative.

When processing coarser bulk materials, the crimping of the wire before weaving is decisive for the screening performance. With their rough threedimensional surface Double Crimp and Lock-Crimp weaves ensure excellent shifting of the material to-be-screened. The chances of the material to pass the apertures and be screened are significantly higher. Furthermore, fine particles are conveyed to the screen surface faster, accelerating the entire screening process. The faster the fine particles are screened, the bigger the surface available for screening the critical near-sized particles. However, in case of particularly heavy, abrasive materials the tops of the wire crimps may wear down faster than the other parts of the wire.

This effect is excluded with the Flat Top crimp that creates a smooth surface on one side. The flat surface ensures consistent wear over the entire screen section. With inclined screening machines, however, the flat surface will have a negative effect on the screening efficiency. The material travels over the screen surface faster. Consequently, fine particles are slower in getting to the surface of the screen, and the chance that all particles are screened is smaller. For this reason, when processing difficult-to-screen materials it is recommended to use Flat Top screens only with horizontal vibrating screening machines.

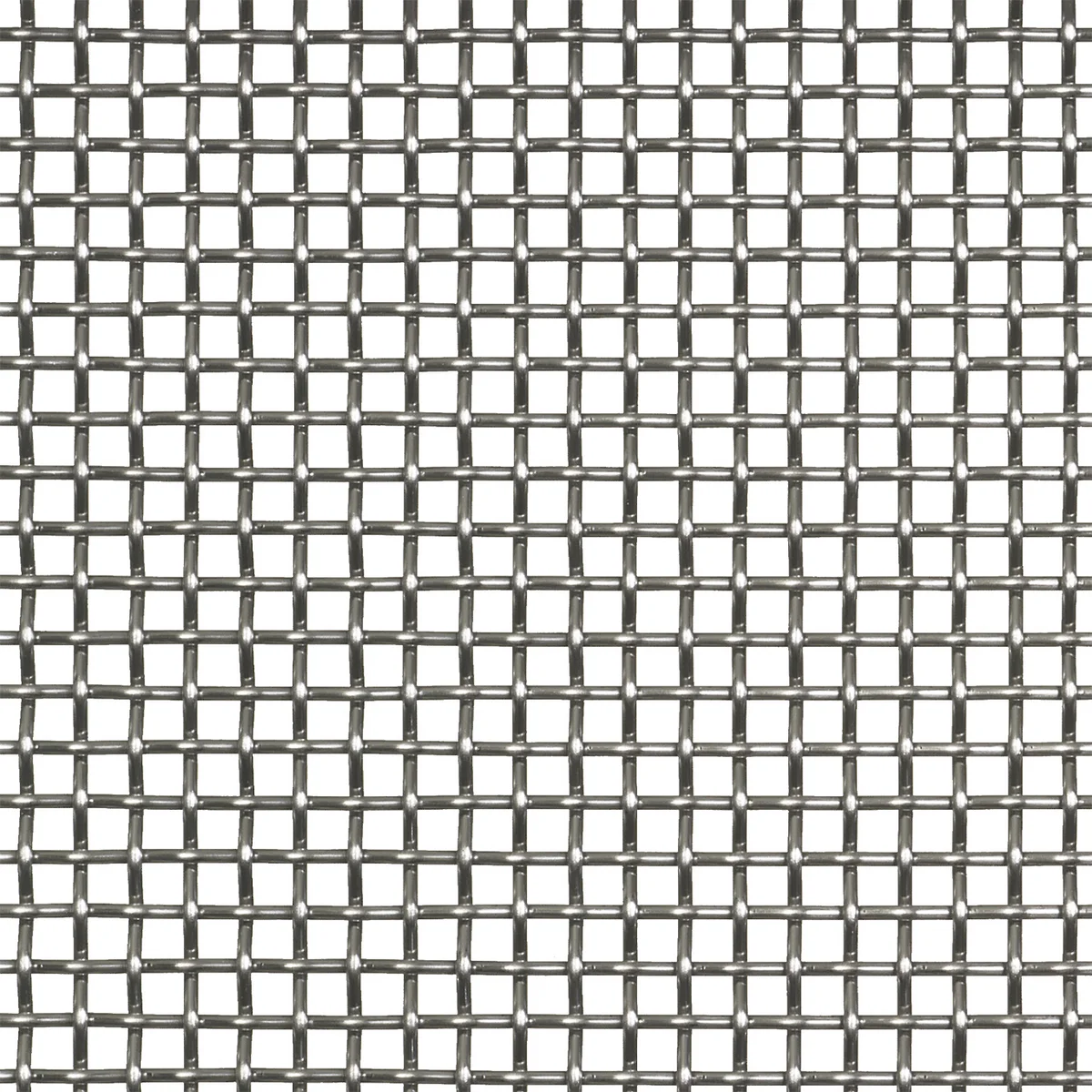

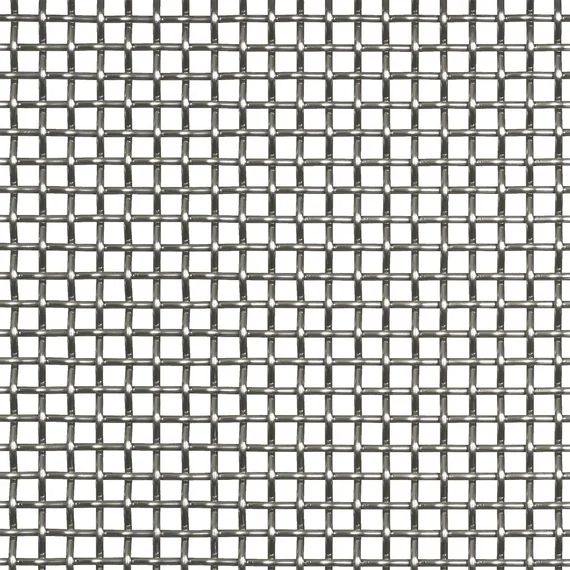

Form A: DOKA double crimped woven wire cloth Form A: DOKA double crimped woven wire cloth Form A: DOKA double crimped woven wire cloth

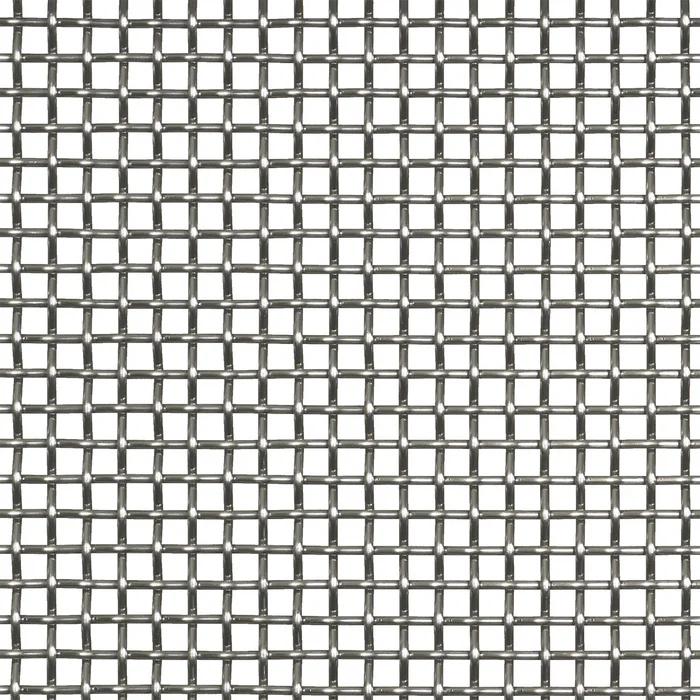

Form A: DOKA double crimped woven wire cloth

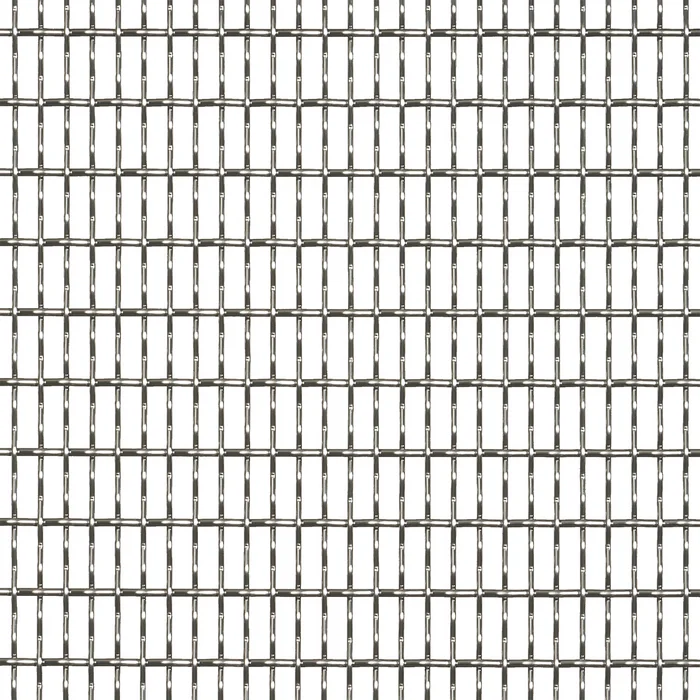

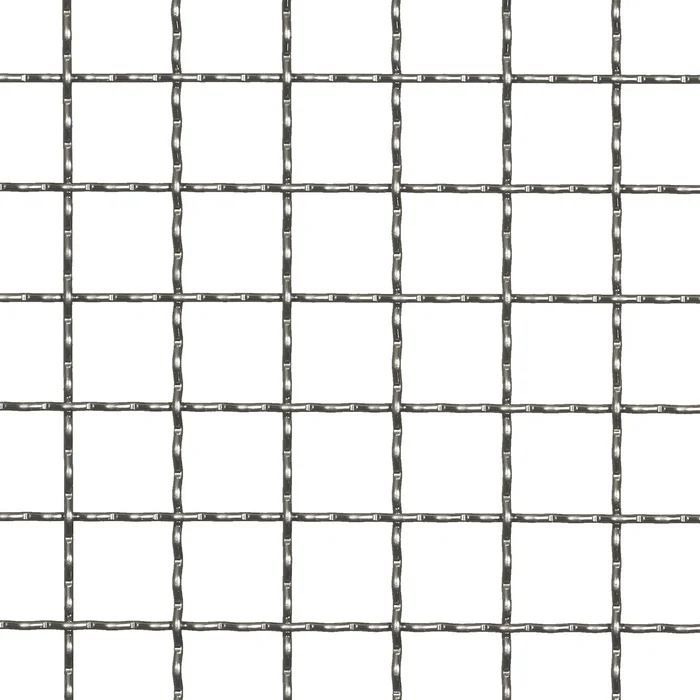

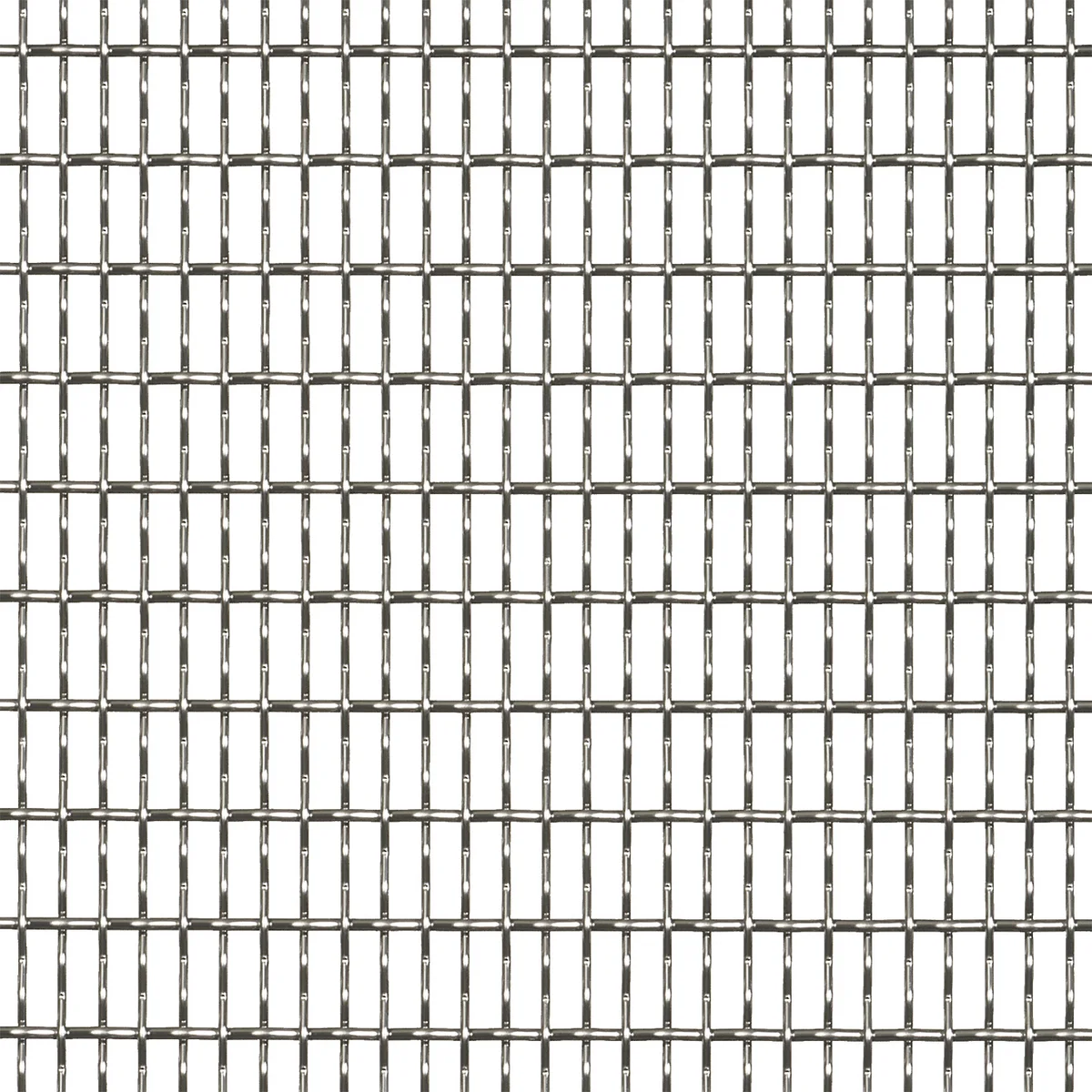

DOKAWELL wire mesh with intermediate crimps in one direction DOKAWELL wire mesh with intermediate crimps in one direction DOKAWELL wire mesh with intermediate crimps in one direction

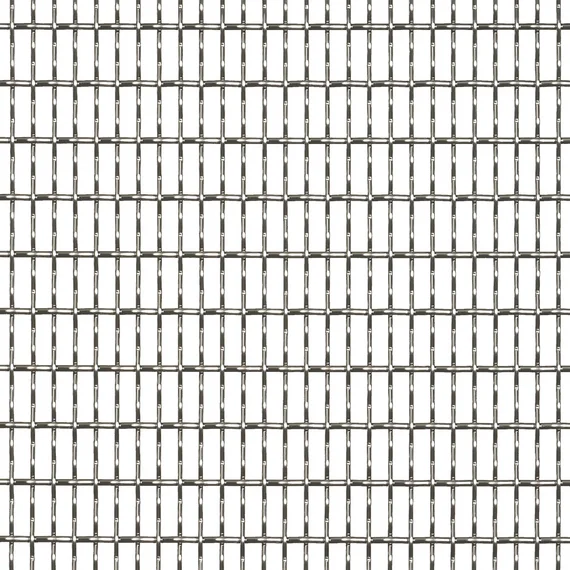

Form B: DOKAWELL wire mesh with intermediate crimps in one direction

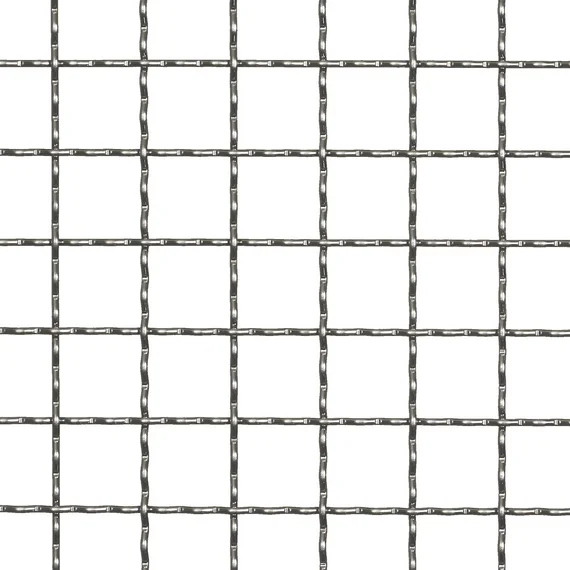

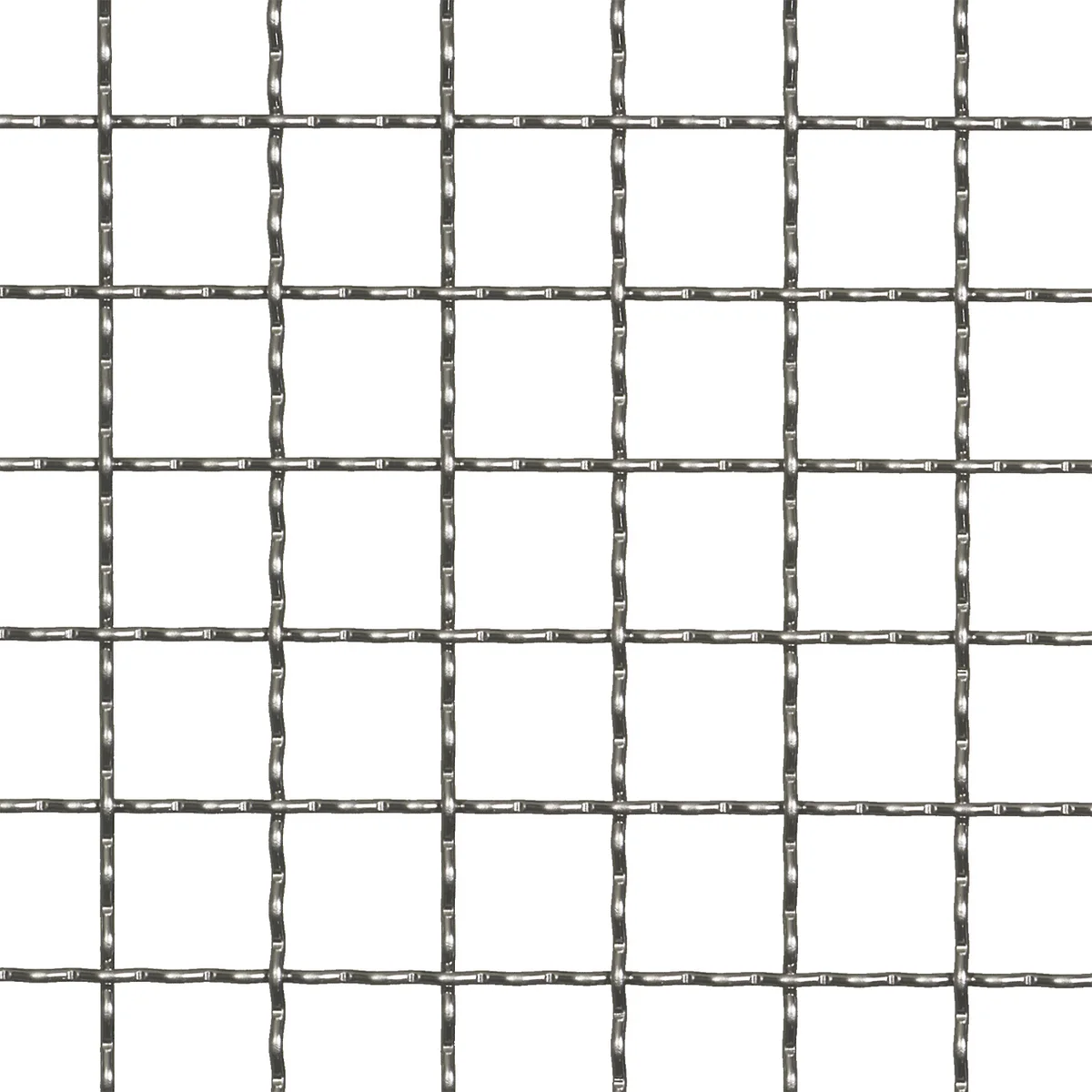

DOKAWELL wire screen with intermediate crimps in both directions DOKAWELL wire screen with intermediate crimps in both directions DOKAWELL wire screen with intermediate crimps in both directions
Form C: DOKAWELL wire screen with intermediate crimps in both directions

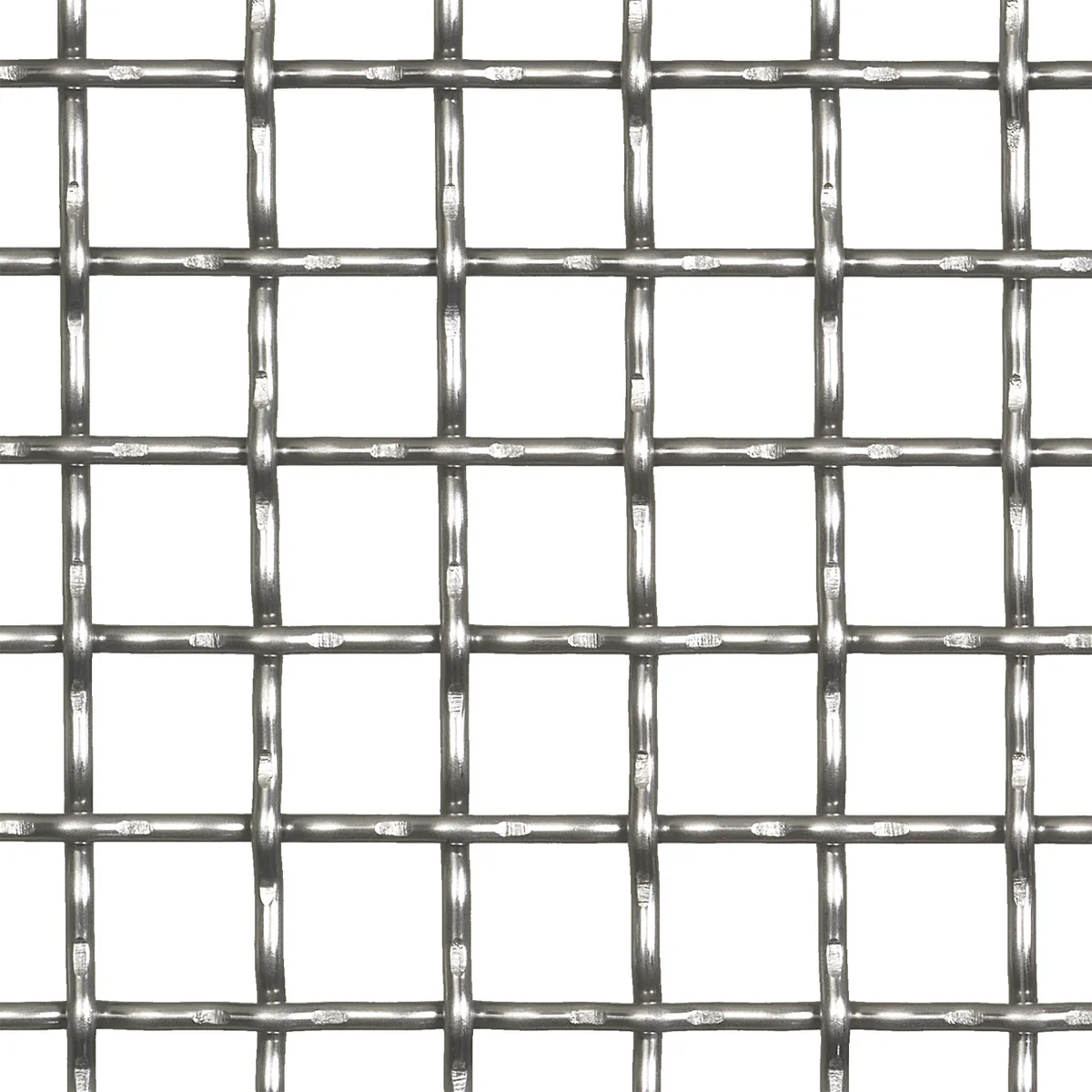

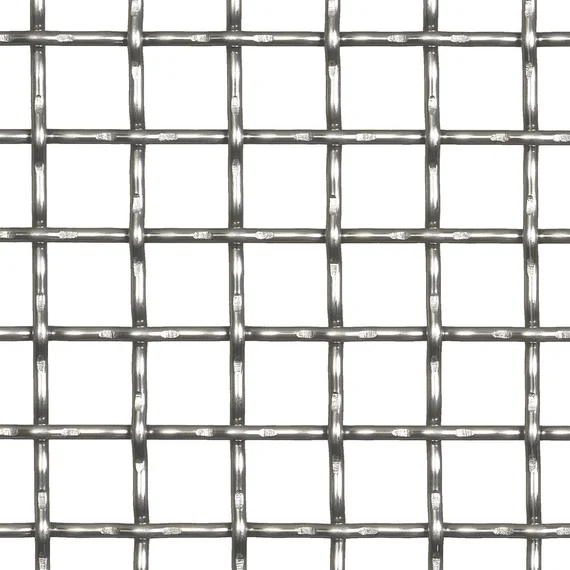

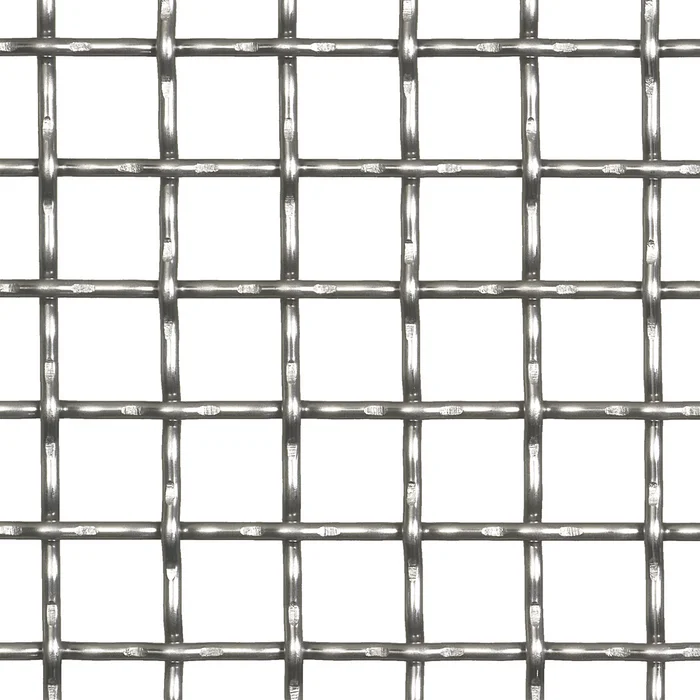

Lock Crimp screens – pre-crimped from both sides Lock Crimp screens – pre-crimped from both sides Lock Crimp screens – pre-crimped from both sides

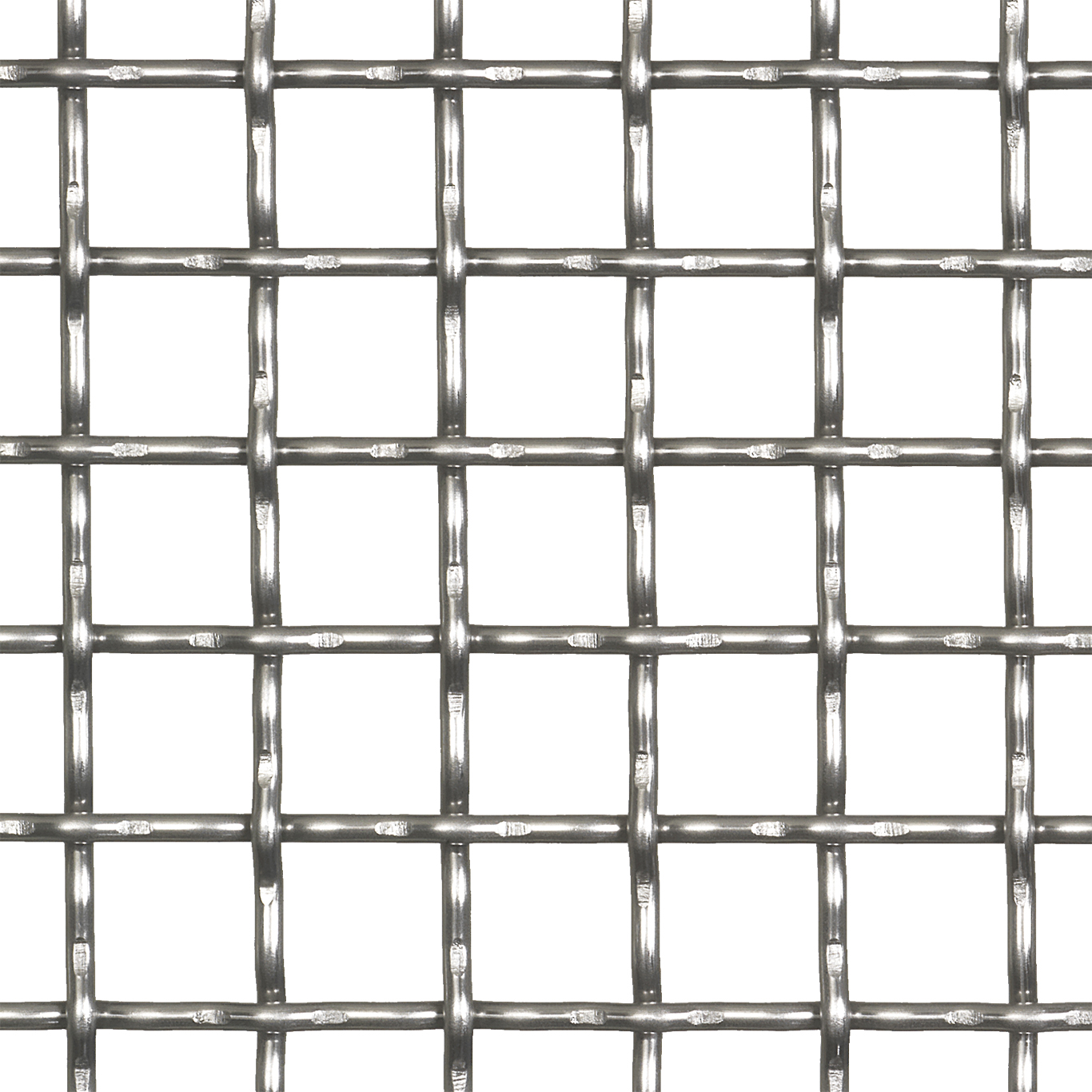

Form D: Lock Crimp screens – pre-crimped from both sides

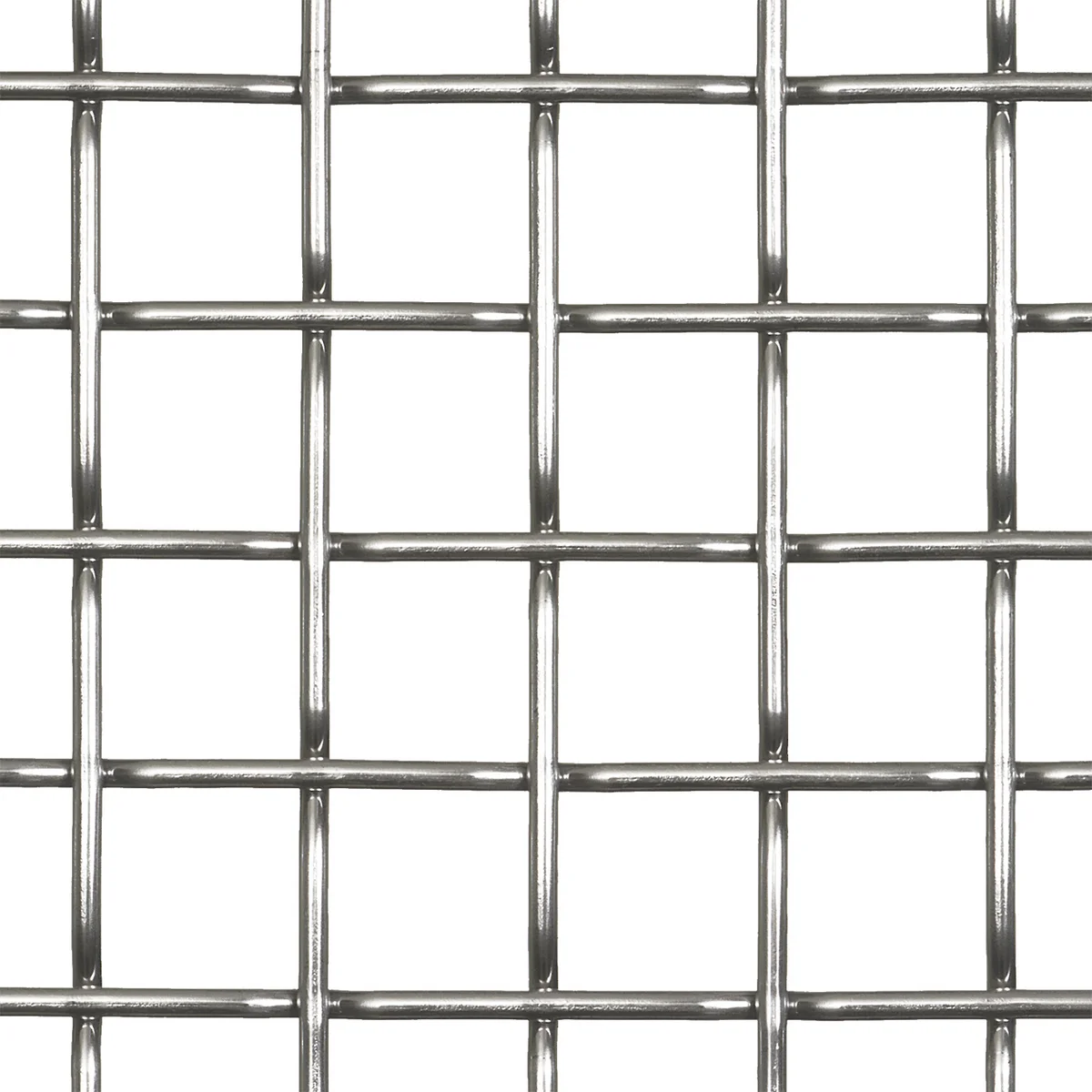

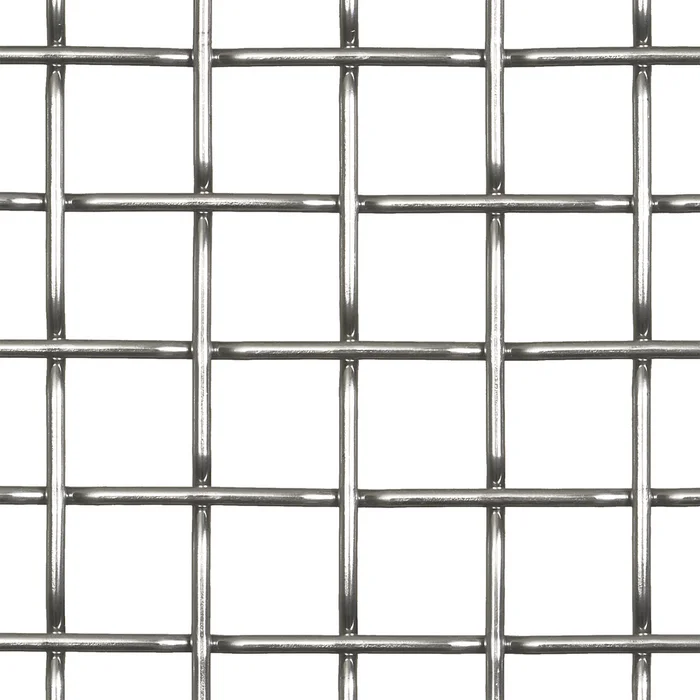

EGLA Flat Top Screen, wire screen with one flat side EGLA Flat Top Screen, wire screen with one flat side EGLA Flat Top Screen, wire screen with one flat side
Form E: EGLA Flat Top Screen, wire screen with one flat side

Top results with classic square and slotted openings

At Haver & Boecker you will find the right mesh size for every application: We produce and stock a wide variety of standard wire mesh fabric according to ISO 14 315 and ISO 9044.

More about square and rectangular meshes

For your special challenges:

Our custom woven wire mesh specifications

In addition to classic square and rectangular meshes, we also produce individually configured special mesh for your industrial wire screens. Spring steel specifications are available from an opening size of 0.400 mm.

We can supply further specifications and individual special designs at any time on request:


Your Team of Experts

Support and Service

Industrial Wire Screens

Industrial Wire Screens

+49 2522 30-8310 screens@haverboecker.com

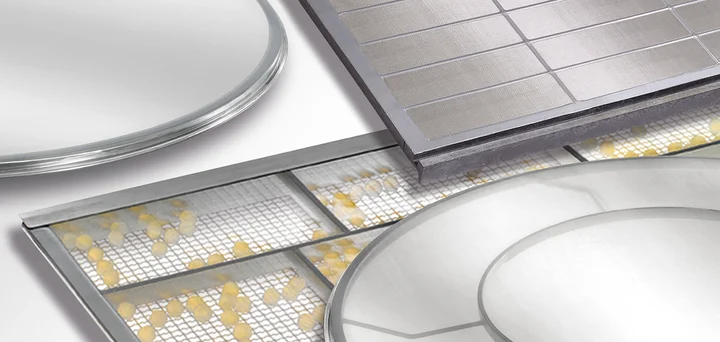

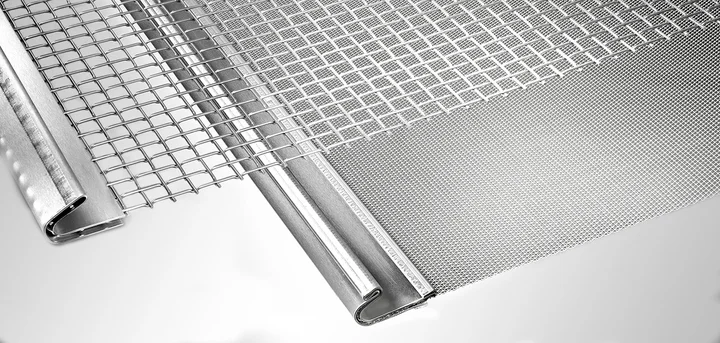

Wire mesh as cut-to-size pieces or rolls

Our product range includes screening media for all types of screening machines and offers mesh sizes from 0.025 mm to 100 mm. We supply all industrial wire screens according to your needs:

  • in rolls
  • cut-to-size
  • as ready-to-install screen sections

We can supply a never ending variety of hook and edge designs. You can also source ready-to-install pretensioned screen frames from us. We supply all screening products in accordance with ISO 14 315 and ISO 9044.
