Strong hooks for individual screen sections

HAVER Screen Sections

Find the best solution for your screening machine

Are you a manufacturer of vibrating screening machines or do you operate such machines in your production? Are you looking for a suitable screen section for your machine? Then Haver & Boecker is the place to go to: We offer you a wide range of wire mesh screen section for all types of screening machines, with the best wire material and the best type of weave hooked for optimal tensioning in any kind of screening machine.

Secure mounting

Of end and side tensioned screen section

Sreen sections with hooks are used on both side and end tensioning screening machines.

For side tensioned screen decks, replacing and tensioning a screen section is particularly easy:

  • You can easily readjust the tensioning bolts on the side walls of the screening machine.
  • In the event of any damage, you only need to replace the damaged screen section on single- or multi-deck screening machines.

On end-tensioned screen decks you can use the full width of the area available between the walls of the machine. Additional rubber or silicone side seals on the long sides provide for optimum sealing.

Screen section with hooks for side tensioned screen decks Screen section with hooks for side tensioned screen decks Screen section with hooks for side tensioned screen decks
Screen section with hooks for side tensioned screen decks

Dimensions and tolerances for HAVER screen sections

Two screen sections on a side-tensioned screen deck Two screen sections on a side-tensioned screen deck Two screen sections on a side-tensioned screen deck
Two screen sections on a side-tensioned screen deck

Side tensioning Spa (OH)

Outside hook dimension = measured from the outside edge of the hooks

Side tensioned screen Side tensioned screen Side tensioned screen
Side tensioned screen
Side tensioned screen one hook up, one hook down Side tensioned screen one hook up, one hook down Side tensioned screen one hook up, one hook down
Side tensioned screen one hook up, one hook down

One screen section on an end-tensioned screen deck One screen section on an end-tensioned screen deck One screen section on an end-tensioned screen deck
One screen section on an end-tensioned screen deck

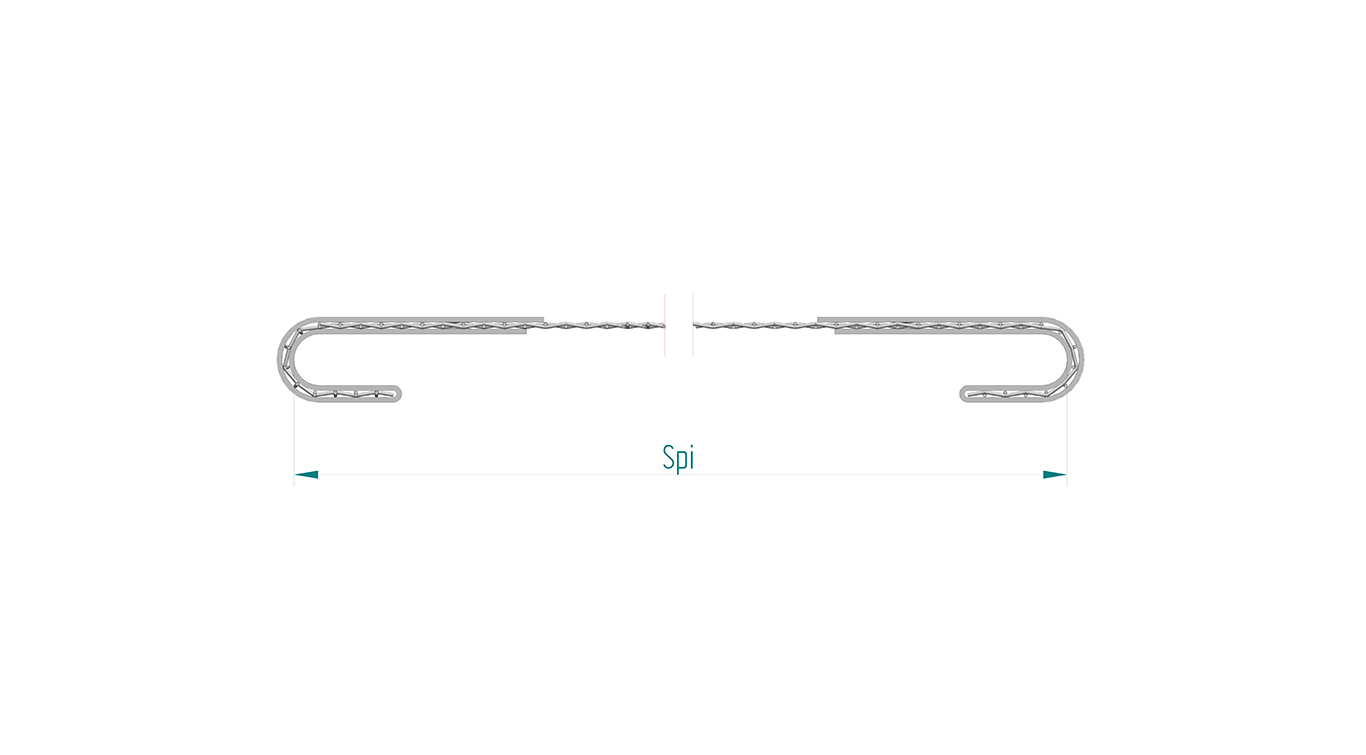

End tensioning Spi (IH)

Inside hook dimension = measured from the inside of the hooks

End tensioned screen End tensioned screen End tensioned screen
End tensioned screen
End tensioned screen with transfer plate on one side End tensioned screen with transfer plate on one side End tensioned screen with transfer plate on one side
End tensioned screen with transfer plate on one side
End tensioned screen one hook up, one hook down End tensioned screen one hook up, one hook down End tensioned screen one hook up, one hook down
End tensioned screen one hook up, one hook down
End tensioned screen with tension bolts on one side End tensioned screen with tension bolts on one side End tensioned screen with tension bolts on one side
End tensioned screen with tension bolts on one side

Strong hooks are our standard

Hooks for Haver & Boecker’s industrial wire screens are available in a wide range of designs and for both side and end tensioning. From standard hook strips to sealing and bar-rail protection with PUR strips, we manufacture the industrial screens exactly as you need them for your application.

HAVER standard hook strips

Special solutions

Our special solutions

For fine wire screen sections, it is particularly difficult to achieve uniform tensioning of the wire mesh over the entire panel width or length. Two special solutions have proven themselves for critical applications:

End tensioned double layered screen section, in the Multistretch version End tensioned double layered screen section, in the Multistretch version End tensioned double layered screen section, in the Multistretch version
End tensioned double layered screen section, in the Multistretch version

HAVER MONO and MULTISTRETCH

The installation and perfect tensioning of our HAVER MONO and MULTISTRETCH screen sections is easy; overstretching is impossible.

For multi-layer screen sections HAVER MULTISTRETCH ensures that the screen and support layer can be optimally tensioned. The flexible PU-Strips adjust both layers to the perfect length.

HAVER MONO and MULTISTRETCH screen sections can also be used in the food industry and for application temperatures of up to 70°C.

Screen sections for the food industry

For use in the food industry with ambient temperatures of up to 60°C, Haver & Boecker offers a special food hook strip with the screen mesh being fixed to the hook strips and fully sealed with adhesives approved for use in food contact. Thus, complete cleaning of the wire screen sections is always possible, the formation of fungus and bacteria is prevented. All special hook strips are available for side- and end-tensioned screening machines.

End tensioning hook strip for food application End tensioning hook strip for food application End tensioning hook strip for food application
End tensioning hook strip for food application
Screen section with a silicone side seal Screen section with a silicone side seal Screen section with a silicone side seal
Screen section with a silicone side seal

Optional accessories for your screen sections

Do you have additional requirements for your screen sections? No problem: You can obtain the following add-ons:

  • PUR strips (wear protection)
  • Stapled rubber seals
  • Stapled or glued silicone seals
  • Transfer plates
  • Flat tension profiles
  • Tension bolts
  • One hook up, one hook down configuration
  • 180° foldover of wire mesh
  • Notching of hooks
  • Ultrasonically cleaned wire mesh
