Teknopark Istanbul

Teknopark Istanbul

Technology Park in Turkey focuses on IMAGIC WEAVE® HO

Situated on the Asian side of Istanbul in an area of 950,000m², Teknopark Istanbul will host around a thousand local and foreign research and development laboratories.

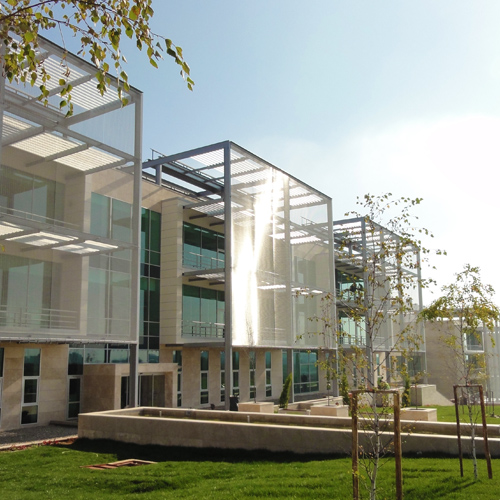

To enhance the appearance of the first building at Turkeys largest Technology Park, architectural team Bütüner Mirmarlik from Ankara chose HAVER & BOECKER architectural wire mesh for the facade cladding.  In total 2,700 m² of architectural wire mesh and an additional 52.5 m² of IMAGIC WEAVE® transparent media façade were used to embellish the building.

IMAGIC WEAVE® offers the right solution for every project.  Due to the vast range of stainless steel wire meshes, various LED pitches and two different LED technologies available IMAGIC WEAVE® media façade can be optimally and individually adapted to suit any project.

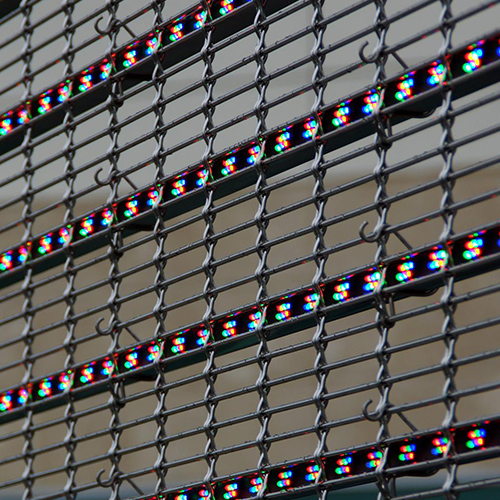

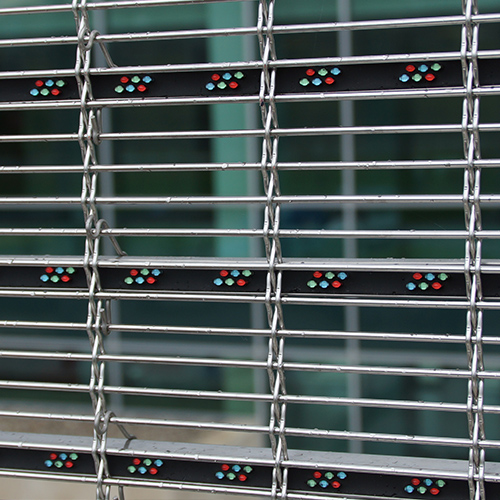

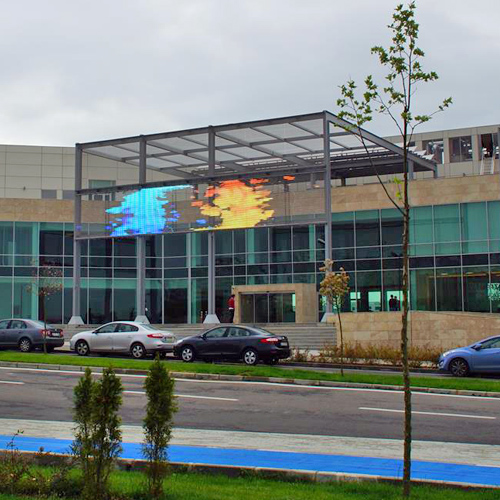

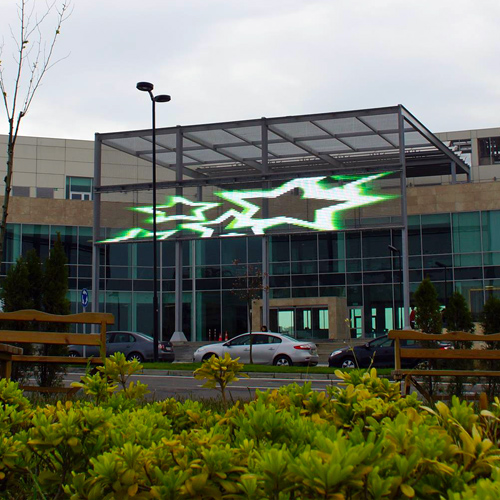

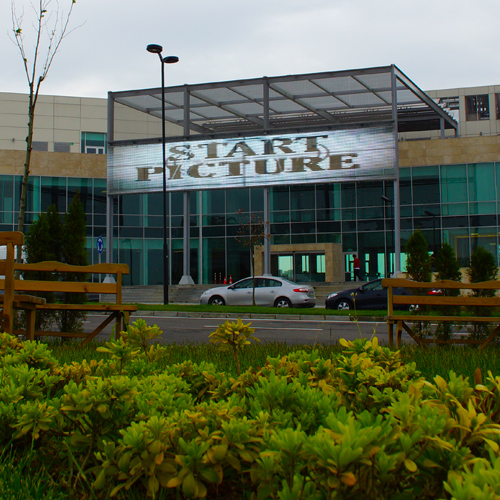

At Teknopark Istanbul IMAGIC WEAVE® HO media façade system is used with an LED pitch of 40 x 78 mm together with architectural weave type DOKA-BARRETTE 8920. IMAGIC WEAVE® HO is the combination of HAVER & BOECKER Architectural Mesh and THT LED profiles. The excellent high brightness of the THT LEDs of the LED mesh IMAGIC WEAVE® HO system makes it suitable for daytime presentations. Slim LED-profiles are discretely attached to the reverse side of the architectural mesh, maintaining the homogenous appearance of the mesh façade at all times. The inconspicuous cabling of the LED-profile is not visible from outside and with a system transparency of 58% the view from inside the building to the outside is retained.

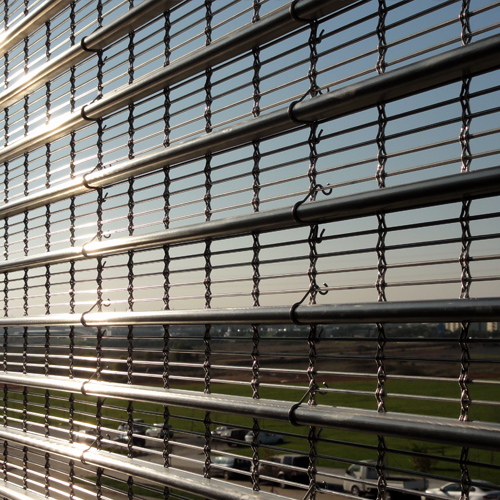

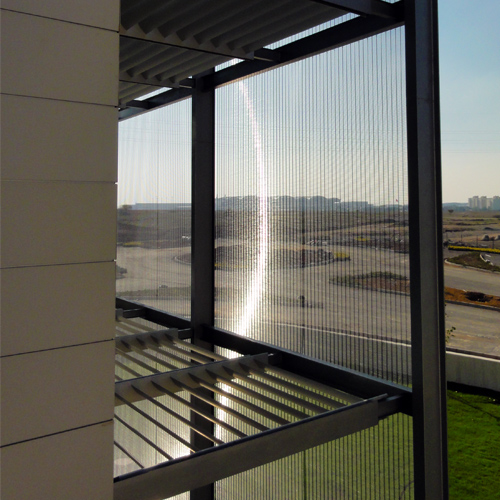

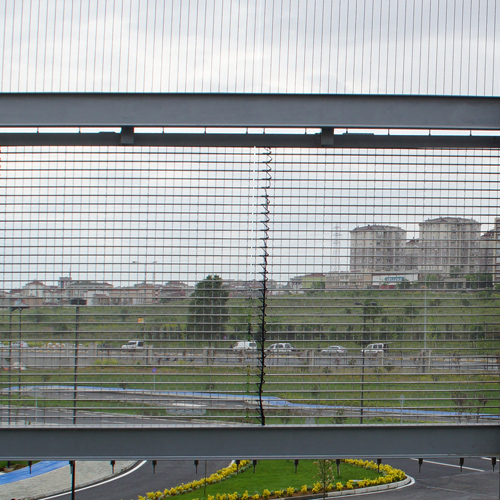

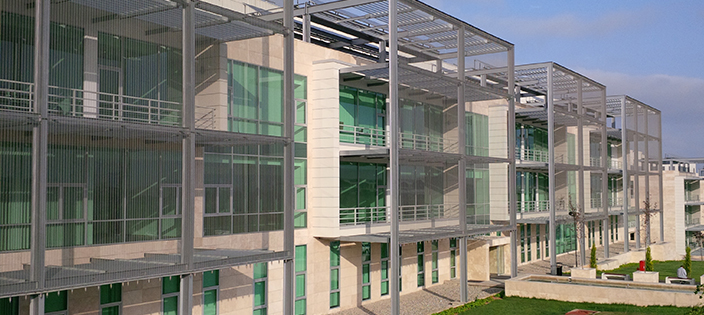

In addition to weave type DOKA-BARRETTE 8920 2,700 m² of MULTI-BARRETTE 8123 cable mesh were installed. With an open area of 64% the architectural mesh acts as a sun protection screen in front of the offices.

During the project HAVER & BOECKER supported the client with technical detailed planning. In addition to the installation, instruction and commissioning of the media façade HAVER & BOECKER carried out theoretical and practical on-site training.

City

Istanbul, Turkey

Application

façade, sun protection

Object Type

office buildings

Mesh Type

Architect

Project Sheet
