Filtration Energy and Environment

The new generation of seawater-resistant filter elements

Series-ready Avesta 254 SMO mesh laminates for demanding seawater applications

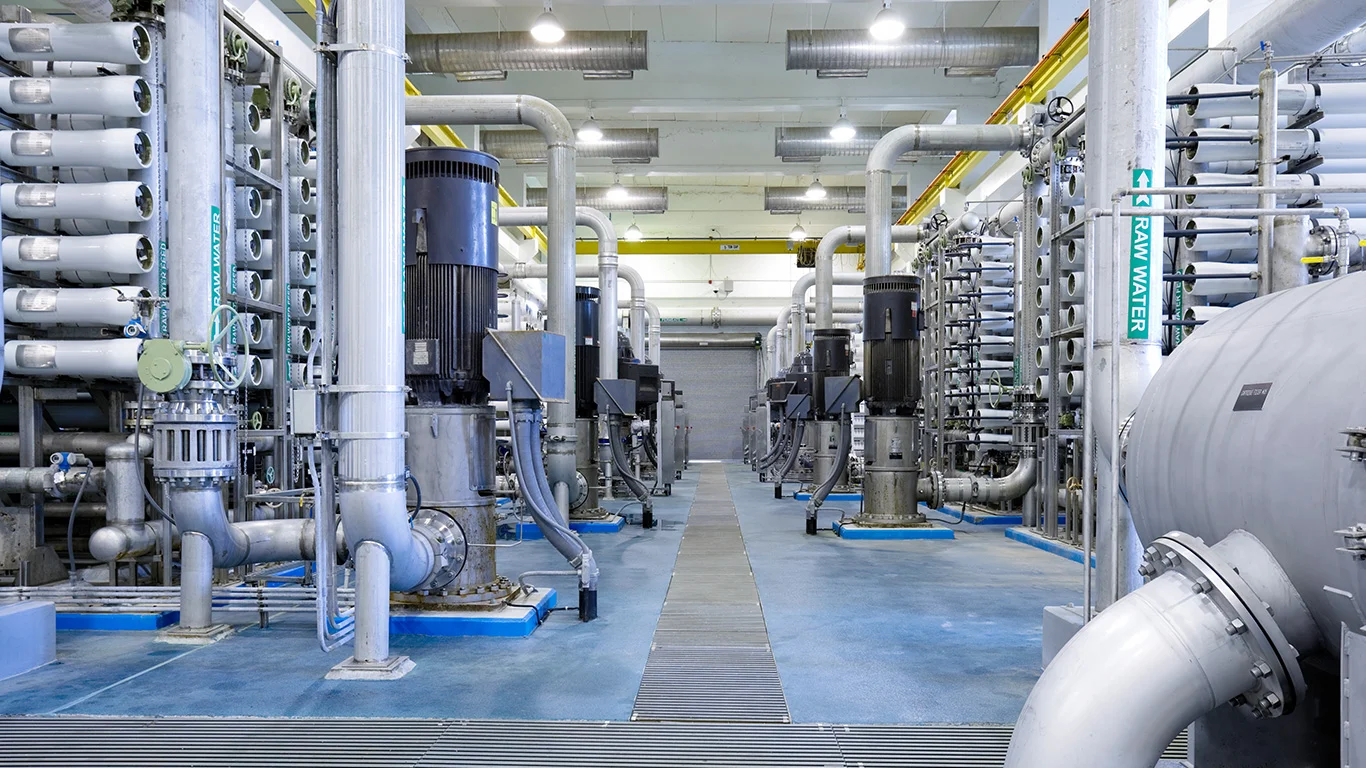

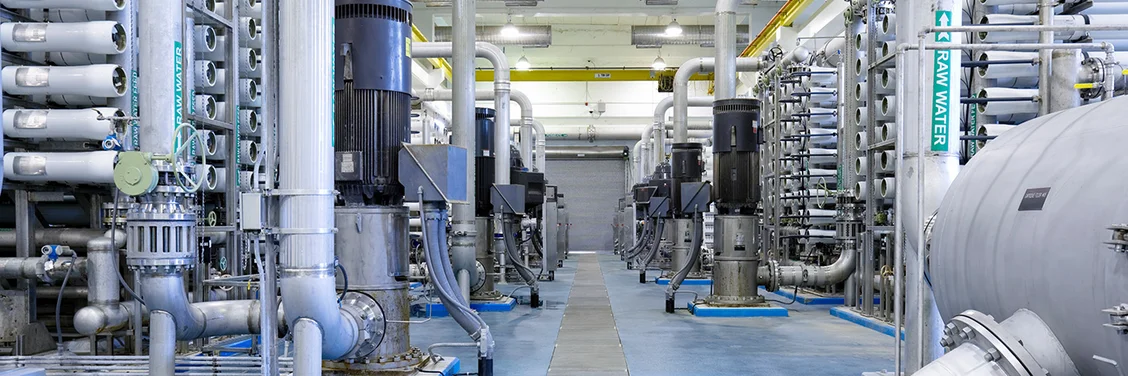

In seawater desalination, filter elements are exposed to extreme conditions: high salt concentrations, mechanical loads and fouling require materials that remain efficient in the long term. Sintered mesh laminates have proven their worth both technically and economically. With the series production of mesh laminates made from Avesta 254 SMO, Haver & Boecker is now setting a new standard for seawater-resistant filter elements.

Mesh laminates consist of several process-specific mesh layers – such as filter, protective, and support layers. In the case of sintered POROSTAR® mesh laminates from Haver & Boecker, these layers are metallurgically bonded. This significantly increases mechanical stability: burst pressure resistance rises by up to 25% compared to multilayer, non-sintered filter elements. Additional support elements such as wedge wire bodies are no longer necessary.

Mesh laminates are particularly effective when combined with seawater-resistant materials like Avesta 254 SMO. This high-alloy stainless steel achieves an exceptionally high corrosion resistance with a PREN value of 43 – ideal for use in saline media. Haver & Boecker has further developed the complex sintering process to enable reliable and series-ready processing of Avesta mesh into laminates.

“So far, efficient sintering of Avesta 254 SMO was not available on the market due to potential delamination,” explains Tim Gerdes, Business Development at Haver & Boecker. “Our solution closes this gap – we are currently the only provider on the market.”

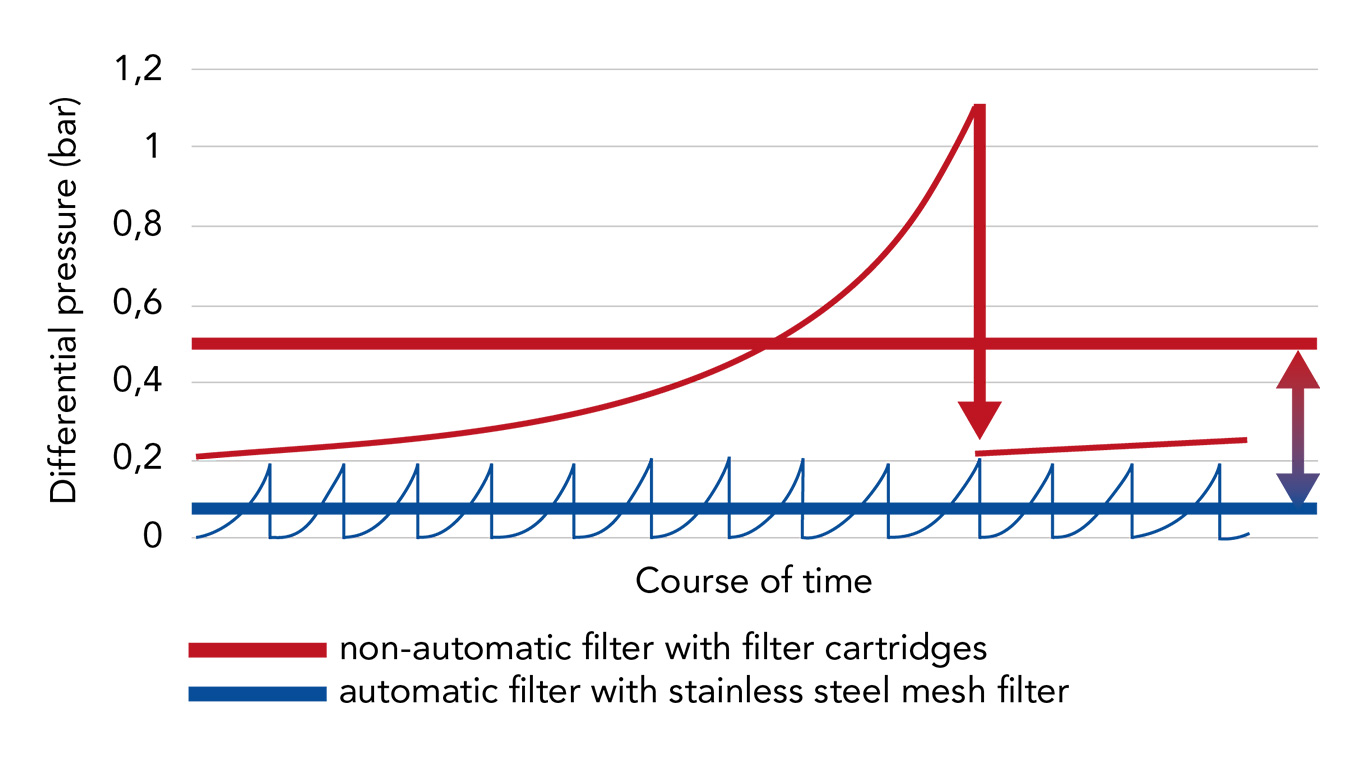

Plant manufacturers benefit from optimized filtration, reduced maintenance costs, and increased operational safety. Another advantage: the sintered mesh laminates combine the strengths of surface and depth filters. Particles are precisely retained on the surface, while the multilayer structure enables high dirt-holding capacity. This ensures uniform flow, long service life, and reduces downstream filtration stages and maintenance effort.

Further information – including applications in automatic filters – can be found here.
