Uniquely two-dimensional

W.S.TYLER® test sieve shakers

Mechanical rotation meets tapping motion

The RO-TAP® from W.S.TYLER®, the American subsidiary of Haver & Boecker, has a unique two-dimensional mode of operation: a horizontal, circular movement and a vertical, tapping movement. This method allows the particles to stratify and "search" for critical openings in the sieve.

W.S.TYLER RO-TAP RX 29 W.S.TYLER RO-TAP RX 29 W.S.TYLER RO-TAP RX 29
W.S.TYLER® RO-TAP® RX-29

W.S. TYLER® RO-TAP® RX-29

Sieve analysis up to a 3 kg sample weight

General points

The W.S. TYLER® RO-TAP® RX-29 can be equipped with test sieves up to 203 mm in diameter. The W.S. TYLER® RO-TAP® RX-29 CE differs from the W.S. TYLER® RO-TAP® RX-29 due to the protective cabinet. With its external control system, it fulfils all the occupational safety requirements for the required CE marking in Europe.

  • The screening of agglomerating bulk material is made possible
  • The sieve shaker is recommended in the FEPA standard for the abrasives industry.
  • The 2D sieve movement saves time and manual re-sieving
  • Simple operation, only the sieving time has to be set



The right test sieves for your application:

  • 6 normal or 13 half-height test sieves and 1 sieve pan 203 mm (8") or 200 mm diameter
Item Designation Part No.
1 Base plate 107770
2 Knocker R-20029
3 Knocker block R-20023
4 Protective plate R-30019
5 Rotating arm protection R-30010
6 Lifting rod R-10036
7 Washer R-10038
8 Main shaft R-20027
9 Top guide plate (plastic) RX-29 R-30008
9A Top guide plate (aluminium) RX-29 R-30008-1
9B* Top guide plate (steel) RX-30 R-30027
10 Bottom guide plate R-30009
12 Cam gear R-20039
13 Toothed belt pulley R-30015
14 Eccentric disc R-10034
15 Block (brass) R-10032
16 Cover for Ro-Tap® RX-29 R-30007
16 Cover for Ro-Tap® RX-30 R-30011
17 Mounting plate for sieve set RX-29 R-30006
17 Mounting plate for sieve set RX-30 R-30013
18 Clamping rail RX-29 R-30023
18 Clamping rail RX-30 R-30022
19 Counter plate R-20019
20 Sliding plate R-20020
21 Cover plate R-20033
22 Spacer ring R-10028
23 Bolt R-10029
23A Washer (1/2" I.D.) 106582
24 Wedge for the eccentric disc R-10042
25 Wedge for a toothed disc R-10039
26 Mounting bolt for knocker R-10035
27 Urethane/cork plug R-10066A
29 Spacer shaft R-10033
30 Motor cover plate R-30018
31 Rubber studs ZA11167
32 Lifting rod coupling (length 2,50") R-10030
33 Stator cover R-40011
34 Bearing with flange R-10061
35 Bearing R-10062
36 Hammer bearing bushing R-10063
37 Washer ZF-10168
38 Steel bushing R-10065
39 3/8-16 NC x 2.25" block screw ZF-10174
40 Drive pulley 14 teeth (1800 rpm) R-10070
40 Drive pulley 17 teeth (1500 rpm) R-10048
41 Digital timer (115 V) R-40029
41 Digital timer (230 V) R-40037
41A 2 mounting brackets R-40040
42 Standard motor 115/230 V, 60/50 Hz P-1500-23
42A 3/8-16 x 1.00" screw ZF-10183
42B 3/8 I.D. Washer ZF-10168
43 timing belt R-10058
44 Spacer washer R-10055
45 1/2-13x2.50" Screw ZZ-10068
45A 1/2 I.D. Washer ZZ-10323
47 Mounting bolt for spacer shaft R-10079
48 3/8" nut ZF-10221
49 1/2" nut ZF-10222
50 10-32x0.50" countersunk screw ZF-10231
51 3/8-16x0.75" countersunk screw ZF-10241
51A 3/8-16x0,75" hexagon nut ZF-10240
52 3/8-16x0.62" pan-head screw 114162
53 5/16-24x1.25" countersunk screw ZF-10251
54 adjustable clamp lever R-20082
55 #10-24x0.25" dowel pin ZA-10148
56 3/8 I.D.x1.50" A.D. Washer ZF-10271
60* cable for the timer R-10018
61* Direct connection (APC-050) R-10112
62* Spiral cable 107764

This e-shop button takes you directly to the specification of the desired product and you can obtain an overview of all our products.

W.S.TYLER® RO-TAP® RX-30 with sound insulation cabinet W.S.TYLER® RO-TAP® RX-30 with sound insulation cabinet W.S.TYLER® RO-TAP® RX-30 with sound insulation cabinet
W.S.TYLER® RO-TAP® RX-30 with sound insulation cabinet

W.S. TYLER® RO-TAP® RX-30

Sieve analysis up to a 3 kg sample weight

General points

The W.S. TYLER® RO-TAP® RX-30 can be equipped with test sieves up to 305 mm. The W.S. TYLER® RO-TAP® RX-30 CE differs from the W.S. TYLER® RO-TAP® RX-30 due to the protective cabinet. With its external control system, this fulfils all the occupational safety requirements that are imposed in Europe for the required CE marking.

  • The screening of agglomerating bulk material is made possible
  • The sieve shaker is recommended in the FEPA standard for the abrasives industry
  • The 2D sieve movement saves time and manual re-sieving
  • Simple operation through the sole input of the sieving time
  • 5 normal or 12 half-height test sieves and 1 sieve pan with 305 mm (12") or 300 mm diameter
Item Designation Part No.
1 Base plate 107770
2 Knocker R-20029
3 Knocker block R-20023
4 Protective plate R-30019
5 Rotating arm protection R-30010
6 Lifting rod R-10036
7 Washer R-10038
8 Main shaft R-20027
9 Top guide plate (plastic) RX-29 R-30008
9A Top guide plate (aluminium) RX-29 R-30008-1
9B* Top guide plate (steel) RX-30 R-30027
10 Bottom guide plate R-30009
12 Cam gear R-20039
13 Toothed belt pulley R-30015
14 Eccentric disc R-10034
15 Block (brass) R-10032
16 Cover for Ro-Tap® RX-29 R-30007
16 Cover for Ro-Tap® RX-30 R-30011
17 Mounting plate for sieve set RX-29 R-30006
17 Mounting plate for sieve set RX-30 R-30013
18 Clamping rail RX-29 R-30023
18 Clamping rail RX-30 R-30022
19 Counter plate R-20019
20 Sliding plate R-20020
21 Cover plate R-20033
22 Spacer ring R-10028
23 Bolt R-10029
23A Washer (1/2" I.D.) 106582
24 Wedge for the eccentric disc R-10042
25 Wedge for a toothed disc R-10039
26 Mounting bolt for knocker R-10035
27 Urethane/cork plug R-10066A
29 Spacer shaft R-10033
30 Motor cover plate R-30018
31 Rubber studs ZA11167
32 Lifting rod coupling (length 2,50") R-10030
33 Stator cover R-40011
34 Bearing with flange R-10061
35 Bearing R-10062
36 Hammer bearing bushing R-10063
37 Washer ZF-10168
38 Steel bushing R-10065
39 3/8-16 NC x 2.25" block screw ZF-10174
40 Drive pulley 14 teeth (1800 rpm) R-10070
40 Drive pulley 17 teeth (1500 rpm) R-10048
41 Digital timer (115 V) R-40029
41 Digital timer (230 V) R-40037
41A 2 mounting brackets R-40040
42 Standard motor 115/230 V, 60/50 Hz P-1500-23
42A 3/8-16 x 1.00" screw ZF-10183
42B 3/8 I.D. Washer ZF-10168
43 timing belt R-10058
44 Spacer washer R-10055
45 1/2-13x2.50" Screw ZZ-10068
45A 1/2 I.D. Washer ZZ-10323
47 Mounting bolt for spacer shaft R-10079
48 3/8" nut ZF-10221
49 1/2" nut ZF-10222
50 10-32x0.50" countersunk screw ZF-10231
51 3/8-16x0.75" countersunk screw ZF-10241
51A 3/8-16x0,75" hexagon nut ZF-10240
52 3/8-16x0.62" pan-head screw 114162
53 5/16-24x1.25" countersunk screw ZF-10251
54 adjustable clamp lever R-20082
55 #10-24x0.25" dowel pin ZA-10148
56 3/8 I.D.x1.50" A.D. Washer ZF-10271
60* cable for the timer R-10018
61* Direct connection (APC-050) R-10112
62* Spiral cable 107764

This e-shop button takes you directly to the specification of the desired product and you can obtain an overview of all our products.

By loading the video, you accept the YouTube privacy policy.

Learn more
Load video

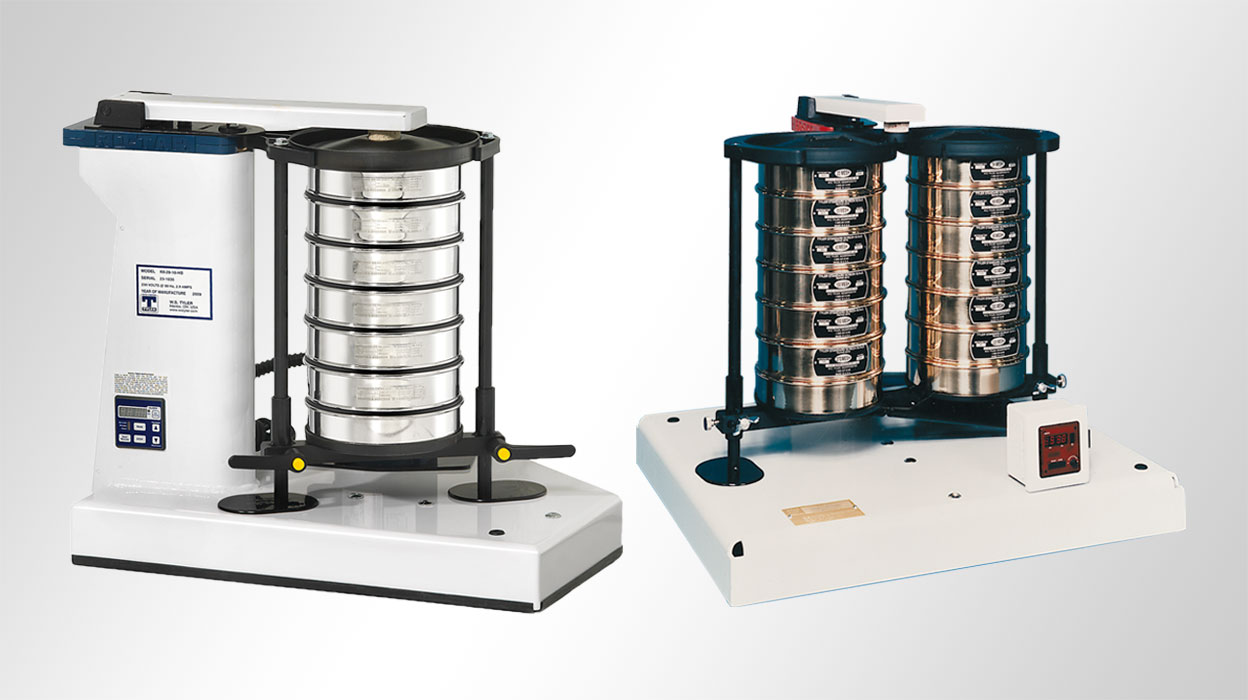

W.S.TYLER® RO-TAP® RX-94 W.S.TYLER® RO-TAP® RX-94 W.S.TYLER® RO-TAP® RX-94

W.S. TYLER® RO-TAP® RX-94

Sieve analysis up to a 6 kg sample weight

The W.S. TYLER® RO-TAP® RX-94 for test sieves up to 203 mm diameter can be equipped with two sieve towers simultaneously. It copies the circular and tapping motion of hand sieving with a uniform mechanical movement.

Two in one go:

  • The analysis of two material samples can be carried out simultaneously
  • The 3D sieve movement saves time and manual re-sieving
  • The sivieng of agglomerating bulk material is made possible
  • Simple operation through the sole input of the sieving time

The right test sieves for your application:

  • 12 normal or 26 half-height test sieves and 1 sieve pan with 203 mm (8") or 200 mm diameter

Please note that the W.S. TYLER® RO-TAP® RX-94 does not meet the occupational safety requirements for a CE marking without a sound insulation cabinet. We therefore recommend a special sound insulation cabinet to reduce the sound emission.

TYLER® RO-TAP® RX812 flat screening machine TYLER® RO-TAP® RX812 flat screening machine TYLER® RO-TAP® RX812 flat screening machine

W.S. TYLER® RO-TAP® RX-812

The American horizontal sieve shaker W.S. TYLER® RO-TAP® RX-812 for test sieves up to 305 mm diameter is the lightest test sieve shaker in the Haver & Boecker product range. It is equipped without the hammer common to the TYLER RO-TAPs and analyses bulk material particles from 0.150 mm with an exclusively oscillating movement.

The light version:

  • Portable test sieve shaker

The right test sieves for your application:

  • The clamping system is designed for up to 6 normal / 13 half-height test sieves 203 mm (8") or 200 mm or for 4 normal / 8 half-height test sieves 305 (12") or 300 mm and one sieve pan each.
